A. SCOPE: Gasket rolls GRADE "A" is a premium grade of vegetable fibre sheet packing, efficiently saturated with a glue-glycerine impregnant rendered insoluble by means of a tanning agent to give a strong, flexible, all-proof packing with properties retained during proper storage and in use.


B. CERTIFICATION: Gasket rolls GRADE "A" is certified to meet the below listed specifications:

HH-P-96G, Type 1 only (Federal Specification)

MIL-G-12803A                                                   Ident. No. P3313B

MIL-G-128030B & MIL-G-12803C                    Ident. No. F326128M6

ASTM D 1170 and SAE J90                             Ident. No. P3313B

ASTM F 104 and SAE J90                               Ident. No. F326128-E21-M6

Underwriters' Laboratory Listing                       No. MH 4649 (763N)


C. PHYSICAL CHARACTERISTICS: Fibre 45% to 55% Moisture 6% to 10% Chemical Solids 35% to 45%


D. CONDITIONING: All samples conditioned prior to testing as specified by applicable application—usually 50% RH -70 to 85°F for a period of 22 or 24 hours.


E. STANDARDS: (Using American Society of Testing Materials Specification ASTM F 104 prepared jointly with the Society of Automotive Engineers and similar in requirements to MIL-G-12803C.

      ORIGINAL            Test Load                  1000 P.S.I.

      PHYSICAL           Compressibility          25% to 40%

      PROPERTIES      Tensile                       Strength 2000 P.S.I.

                                    Recovery                   40% minimum



      PHYSICAL           Fuel B--Thickness increase       5% maximum (Not Applicable to MIL-G-12803C)

      PROPERTIES      #3 Oil--Thickness increase        5% maximum

      AFTER                 Fuel B--Weight increase          15% maximum (Not Applicable to MIL-G-12803C)       IMPRESSION       #3 Oil--Weight increase           15% maximum

                                   Water--Weight increase           100% maximum


F. THICKNESS TOLERANCES:

                       Thickness                                 Plus or Minus

                       .006", .010" and .015"                     .0035"

                       .021", .031", .046" and .062"            .005"

                       .096" (3/32")                                     .008"

                       .125" (1/8") and up                           .016"


G. FLEXIBILITY: Gasket rolls GRADE "A" is capable of withstanding bending around a rod with a diameter of twice the thickness of the material under test, without cracking, breaking, or excessive marring of the surfaces.


H. TEMPERATURE LIMIT:              250° F

Performance Level:

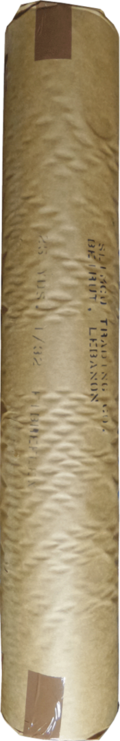

gasket rolls

Click picture to enlarge

                                              THE WORLD'S FINEST GASKET PAPER


  • It is an insoluble, impregnated, strong & flexible high-grade fiber.
  • It is recommended for all oil, grease, water, gasoline flange connections on trucks, tractors, automobiles, Recreational Vehicles, and industrial motors.
  • It is used for oil applications, alcohol distilleries, shipyards, equipment makers and industrial plants for pump, pipe, tank, gear, flange joints.
  • It is plant fibre, chemically treated to resist coal tar, oils, water, alcohol, grease, air, gas, gasoline and solvents of all kinds. Resists heavy pressure--Strong but Compressible.
  • For use in industrial, chemical, petroleum, petrochemical and automotive industries.
  • Meets all USA federal, military, S.A.E. and A.S.T.M. specifications.

General Specifications

Gasket Rolls Grade A

Slimco Trading Company

+961-5-430760

Kfarchima, Lebanon

Rolls dimensions:

  • 25 x 1 yard

Thickness available:

  • 1/16
  • 1/32
  • 1/64
